Hardness Tester

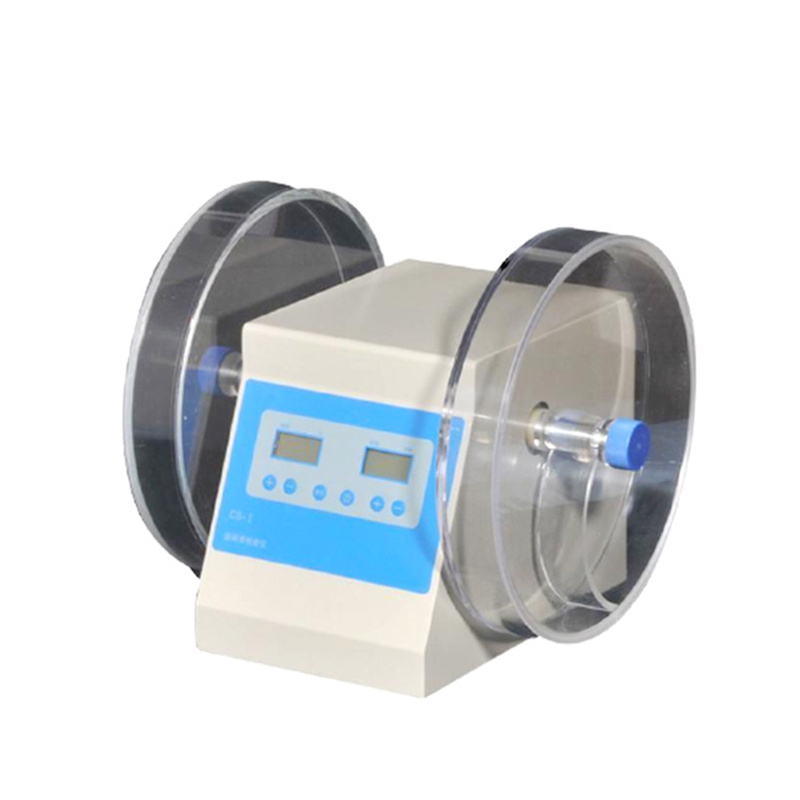

Brittleness tester is a testing instrument to check the brittleness of non coated tablets and other physical strengths, such as crushing strength.

1.The brittleness tester is controlled by a single chip microcomputer, which is willing to have high control accuracy with the rotation speed and number of turns.

2.The instrument panel adopts a PC mask, which can be displayed by a digital tube with a touch of a key.

3.The main components and parts of the whole machine are imported or domestic high-quality products.

4.Simple structure, elegant appearance, excellent performance, simple operation and reliable operation.

Internal dimension of cylinder	Diameter: 286MM
	Depth: 39MM
Sliding height	156MM
Cylinder rotation speed range	CS-1: 20-90 rpm
	CS-2: fixed 25 rpm
Cylinder rotation speed accuracy	± 1 rpm
Range of cylinder rotation cycles	CS-1: 10-240 revolutions
	CS-2: 25-225 rpm
Power supply	220V 50Hz 50W
