Tester summary:

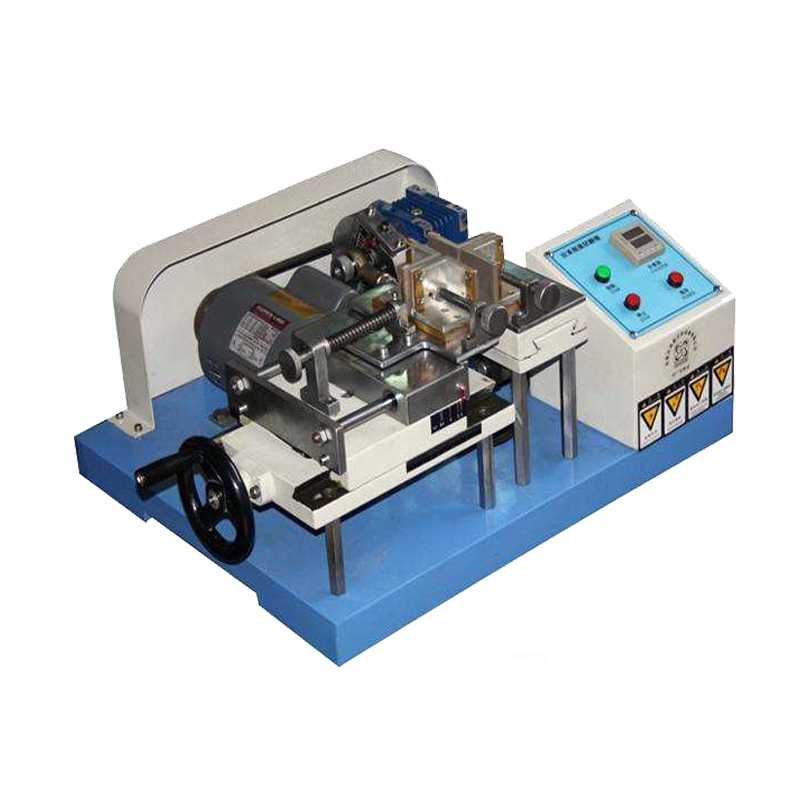

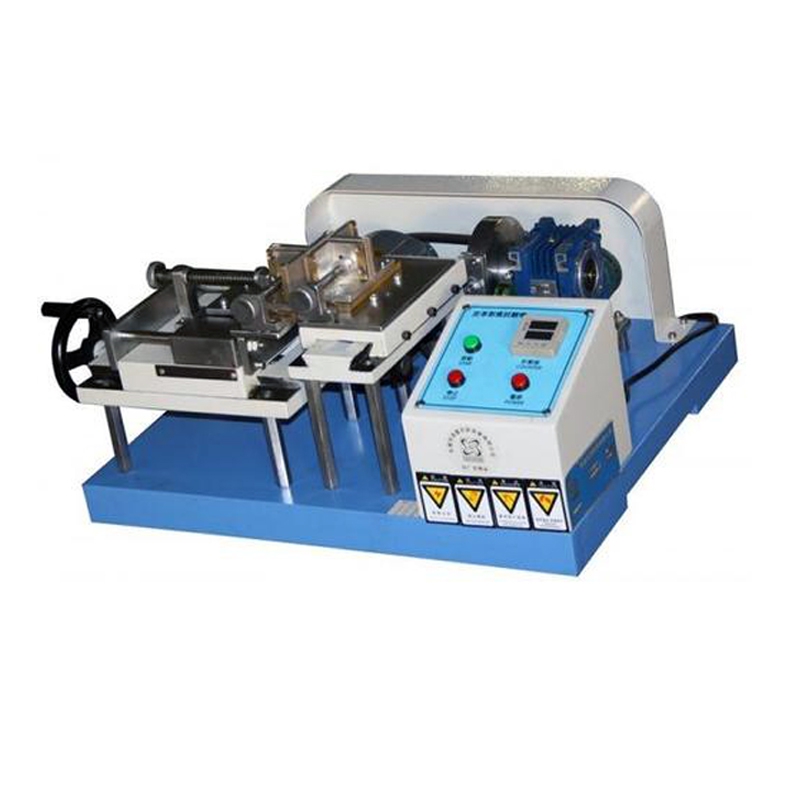

The leather crumpling resistance test machine is applied to test the crumpling resistance of leather, rubber, cloth and other materials, clamped the specimen by testers fixture, it looks like a cross. And then the tester is bending and ubbing the material until a certain times, after that removed the specimen, Observing the surface of material is rupture, wrinkle, fade or not. The tester automatic counting, automatic stop.
Corresponding standard: JIS-K6328, L1005
Applicable industry:
leather crumpling resistance test machine applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
Technical parameters:
| Specimen dimensions (W × L) | 25*100 mm |
| The largest distance of fixture | 40mm |
| Speed | 120 cpm |
| Load | 2pcs 0.5 ~ 5kg Adjustable |
| Minimum graduation | 500g |
| Testing displacement | 0 ~ 50 mm adjustable |
| Testing Speed | 120cpm |
| Counter | 6 digit LCD digital display |
| Power Supply | 1Phase, 110V/220V |
| Volume (W × D × H) | about 65 × 51 × 30 mm |
| Weight | about 45kg |
