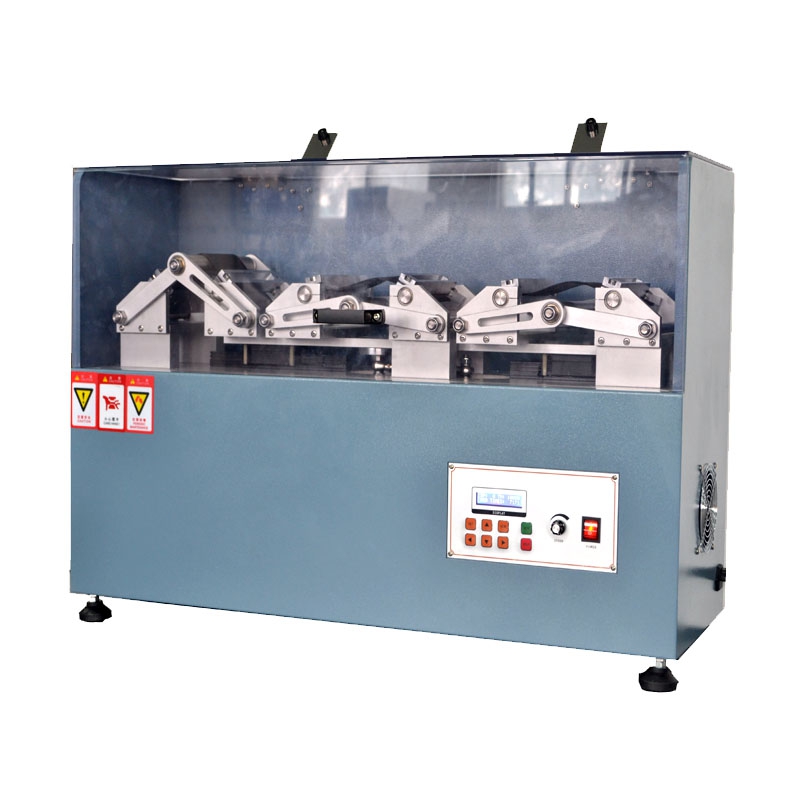

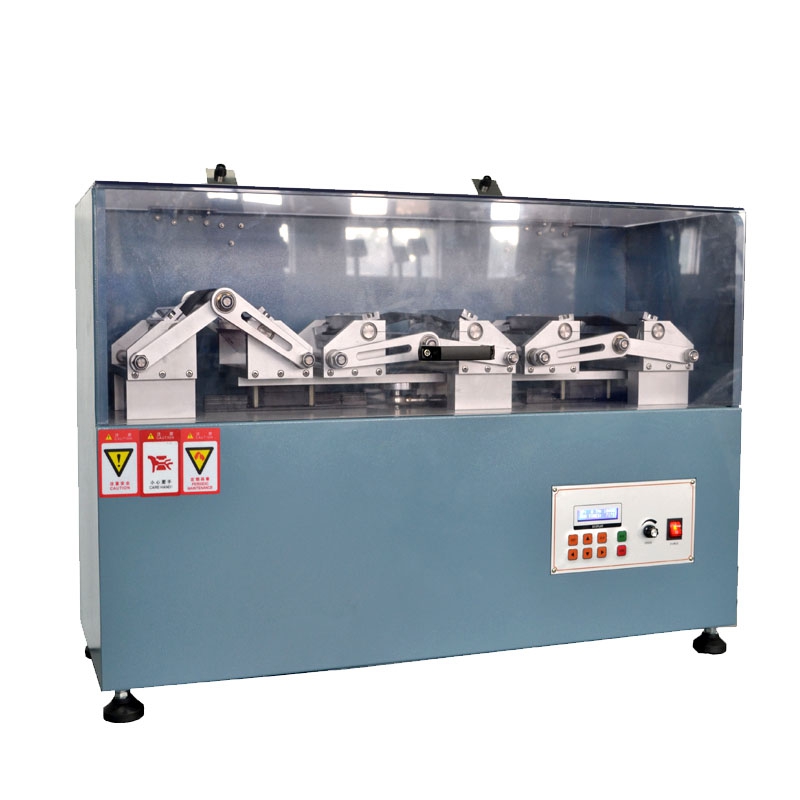

EN 344 Shoes sole Bending Test machine
Product Description:
Rubber Leather Shoes Bending Resistance Tester is used to determine the resistance of materials to cut growth during repeated flexing. It’s especially applicable to outsoles of footwear including sole constructions. Use a cutting tool to piece the specimen between the cleats at three points along the line of maximum bending stress. By the specified speed and times of 90° bending action to inspect the cuts growth with a measuring.
Specifications:
|
Sampling |
3pcs |
|
Flexing angle |
90° |
|
Flexing Speed |
125-150CYCLES/MIN |
|
Width of the grips |
144MM |
|
Counter |
LCD 0-999999 |
|
Dimension(W*D*H) |
100*53*30CM |
|
Weight |
98 kg |
|
Power |
AC220V,3A |
