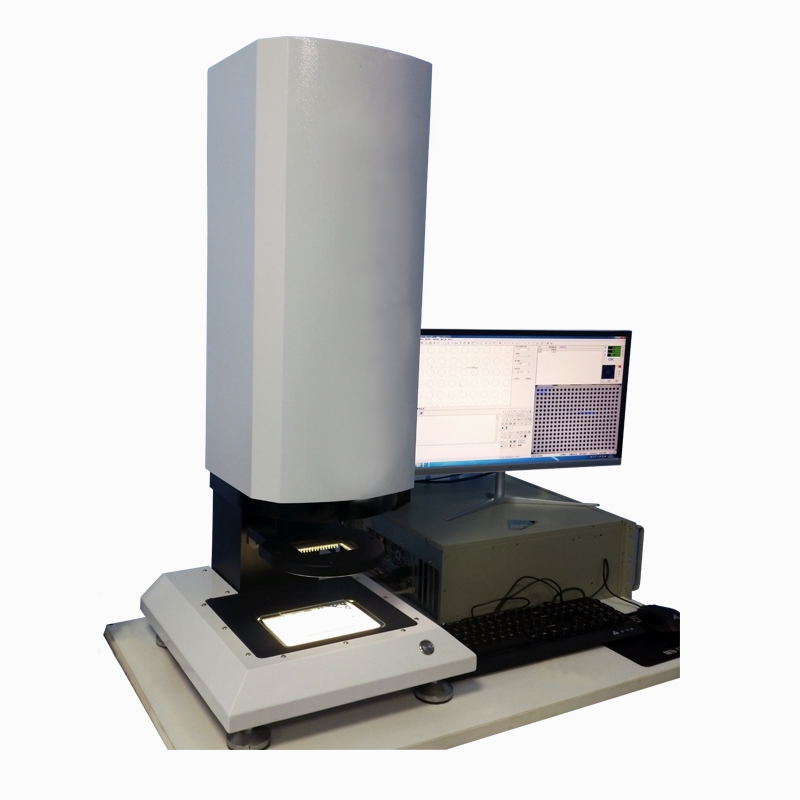

Optical Test Equipment

Instrument model

6013-322DA

6013-432DA

Measurement Range (mm) (X*Y*Z)

300*200*200

400*300*200

Workbench (mm)

620*380

720*480

Glass tabletop dimensions (mm)

360*260

460*360

External dimensions (mm) (W*L*H)

620*780*1750

740*930*1750

Instrument weight (kg)

350

400

Load capacity (kg)

35

working environment

temperature：20℃±2℃；Temperature variation: <2°C; Relative humidity: 20%~80% (non-condensing)

CCD

1/3 color high-resolution camera with 700 TV lines (optional)

Zoom objective lens

0.7-4.5X

Video magnification factor

30-225X

Object field of view

8-1mm

working distance

83mm

Linear accuracy (μm)

X/Y accuracy ≤ (3+L/250) μm, Z-axis (5+L/200) μm ("L" refers to the length of the measured object, in millimeters)
