Technical parameter:
|
Capacity |
0-2000KG or customize |
|
Induction |
Force sensors |
|
Resolution |
1/100000 |
|
Accuracy |
± 1 % |
|
Units switch |
Kgf, Lbf, N.( Optional) |
|
Display resolution |
0.001N |
|
Testing stroke |
500mm |
|
Press-board size |
400 * 400mm |
|
Test speed |
5mm ~ 100mm / min can be arbitrarily input |
|
Stop mode |
overloaded, emergency stop button, test piece to break automatic shutdown, upper and lower limit settings automatic downtime |
|
Safety device |
overload protection, limited element protection device |
|
Machine power |
AC variable frequency motor drive controller |
|
Mechanical system |
high precision ball screw |
|
Power |
AC220V / 50HZ ~ 60Hz 4A |
|
Weight |
about 650kg |

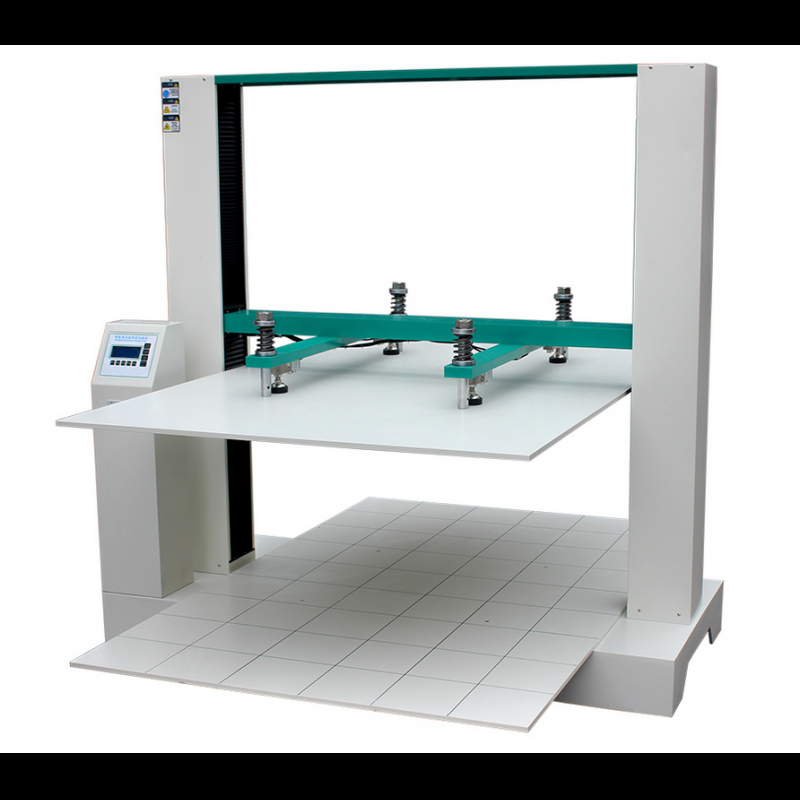

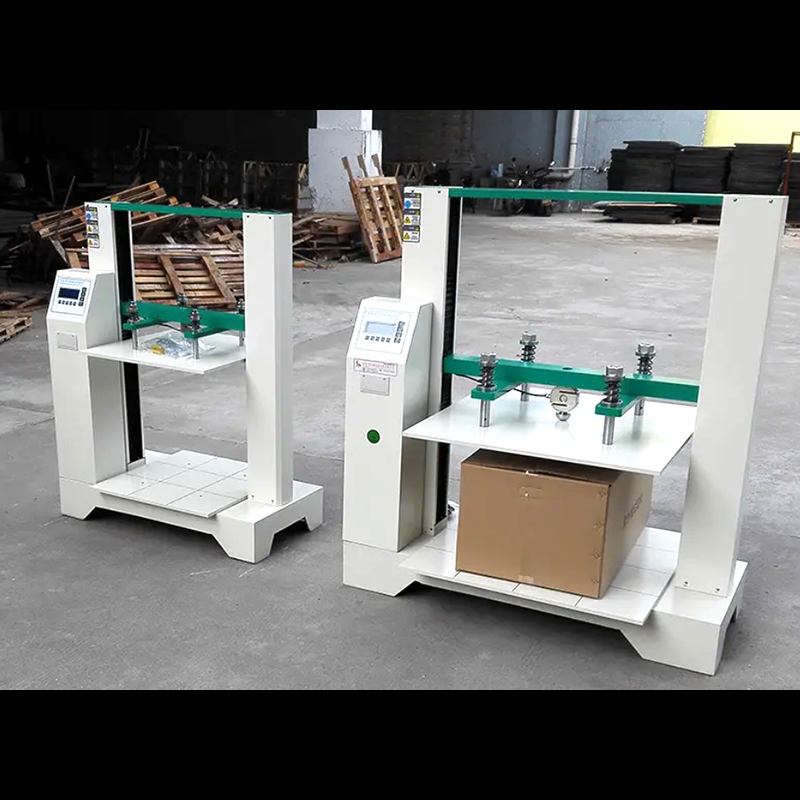

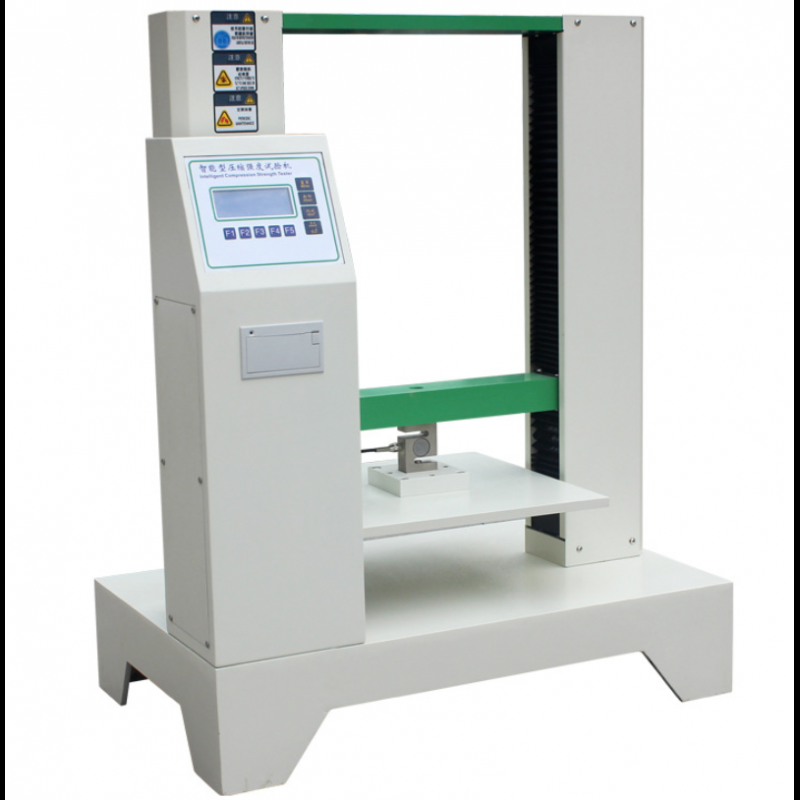

Product description:
Package Paper Box Compression Strength Test Machine is used to test tube, yarn tape, paper tins, synthesis of tins, horizontal compressive strength.
Application:
Package Paper Box Compression Strength Test Machine is the ideal test auxiliary appliance for paper, packaging, scientific research, quality and other industries and department.
Standard:
GB / T 4857.4-92 Power test method for packaging transport package
GB / T 4857.3-92 Packaging transport package static load picker code test method
Safety devices:
1. Trip protection: set to the beginning, lower limit position protection, prevent more than the preset stroke;
2. Strength protection: The system can set the maximum force to prevent exceeding the sensor calibration value;
3. Emergency stop: There is an emergency stop on the right side of the base to handle burst conditions.
Standard attachment:
1. Operating instructions;
2. Randomly give print paper 2 volumes;
3. High precision load sensor;
4. Micro printer (one printable test report).
5. 1 power cord;
