Usage:

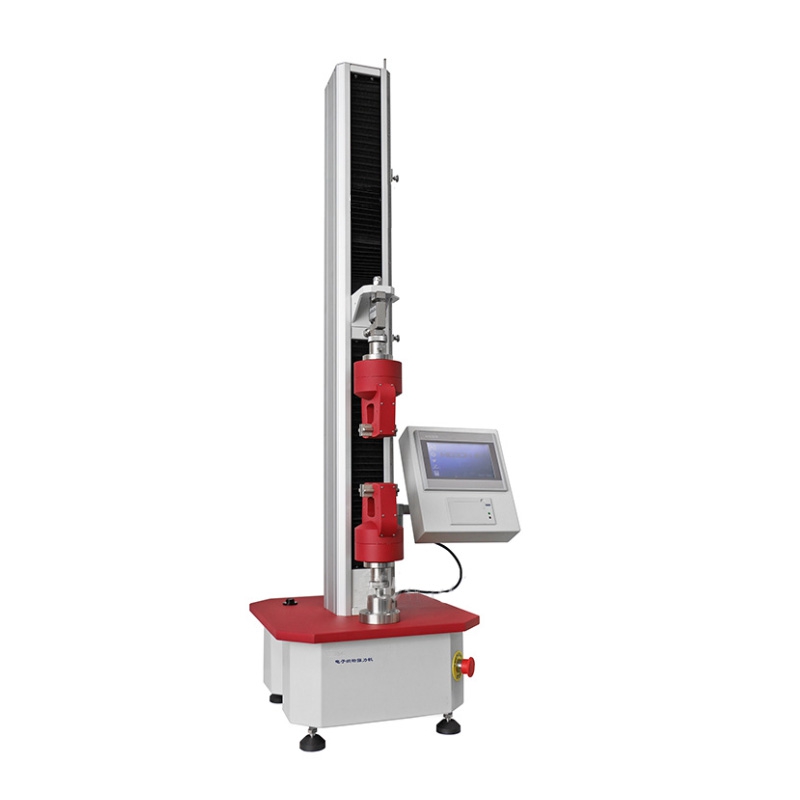

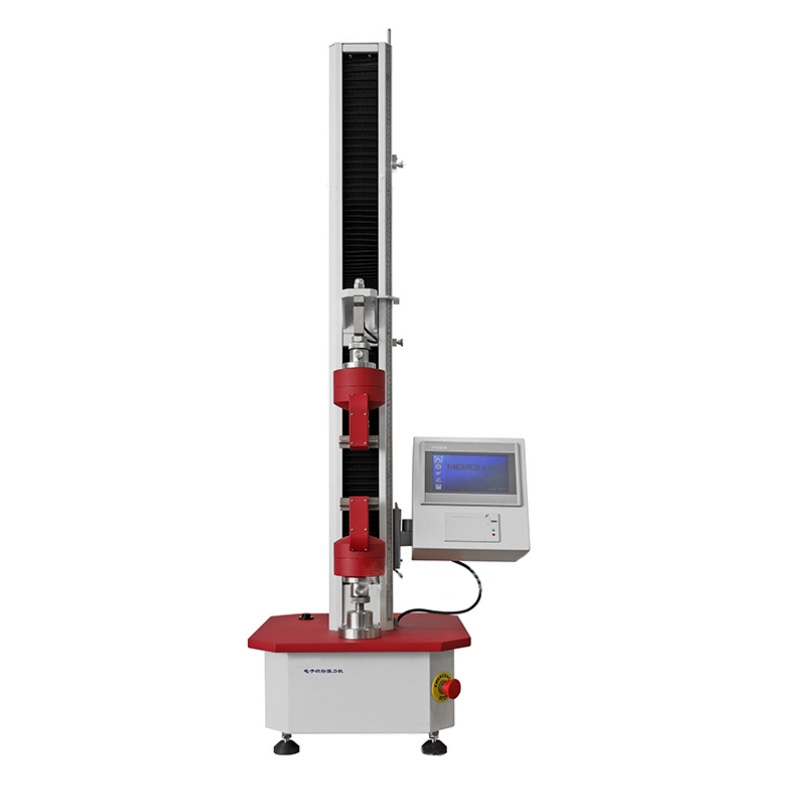

Universal fabric strength test machine suitable for testing a diverse range of applications - including apparel, nonwovens, and other non-textile materials.
Test Types:
Compression, Strength, Stretch & Recovery, Tear, Tensile Strength
Testing standards:
|
Standard number |
standard name |
speed mm/min |
clamping distance mm |
sample size (W*L) mm |
|
American standard |
||||
|
ASTM D5035 |
Test method for Breaking Strength and Elongation of Textile Fabrics (Strip method) |
300
|
75
|
25×150
|
|
ASTM D5034 |
Test method for Breaking Strength and Elongation of Textile Fabrics (Grab method) |
300 |
75 |
100×150
|
|
ASTM D2261 |
Standard test method for tearing strength of fabrics - Tongue method |
50/300
|
75 |
75×200
|
|
ASTM D5587 |
Standard test method for tearing strength of fabrics - Trapezoidal method |
300
|
25 |
75×150
|
|
ASTM D1683 |
Standard test method for seam breakage of woven clothing fabrics |
305
|
75 |
100×350
|
|
ASTM D4964 |
Stretch and elongation testing of elastic fabrics |
500 |
250 |
100×350 |
|
British standard |
||||
|
BS EN ISO 13934.1 |
The breaking strength and elongation at break were measured by strip method |
100
|
200
|
50×200
|
|
BS EN ISO 13934.2 |
The breaking strength and elongation at break were measured by grab-sample method |
50 |
100 |
100×200 |
Features:
1. The load cells and the extensive range of tool-free specimen grips are changeable.
2. Changing the load cells is tool-free, easy and quick. The software automatically recognition the selected load cell.
3. Software automatically sets up the test parameters of the selected Standard.
4. Quick change jaw face are tool free and a very simple and efficient process.
5. Along with pre-loaded standards, allows the user to custom and save their own standards.
6. The jaw separation is automatic, so unlike some of the competitor’s instruments, no steel ruler is required to measure the separation space.
7. When loading a sample, the jaws will initially apply very light pressure, sufficient to grip the sample but not to cause damage fingers.
8. Enhanced and supported by the easy to use and intuitive test analysis software.
9. All reporting can be saved directly to PDF, speeding up the process of producing the final test report.
10. The real time presentation of Extension and Force values allows monitoring of results and immediate visibility of trends during testing.
11. Custom statistical reporting. Specimen test results including current mean value allow immediate visibility of trends.
12. All the data from testing can be exported to Excel with an automatic graph creation facility, which enables the user to create their own custom analysis and statistics.
Technicial details:
|
Measuring Principle |
Constant Rate of Extension (CRE) |
|
Capacity (Tension & Compression) |
5000N |
|
Load Cells available |
5000N, 2500N,1000N, 500N |
|
Test / Return / Jog Speed |
1 - 1000mm/min |
|
Accuracy of Load Cells Class |
0.5 (±0.5%) from 2 - 100% of load cell capacity |
|
Speed Accuracy |
±0.005% |
|
Total Vertical Stroke |
600 mm - Maximum movement of the head between limit switches when no jaws are fitted |
|
Positional Accuracy |
± 0.01mm |
|
Dimensions |
430 x 480 x 1500 mm |
|
Power supply |
220V,50Hz or 110V,60Hz |
|
Air requirements |
600-800kPa |
|
Weight |
75 Kg |
