Summary：

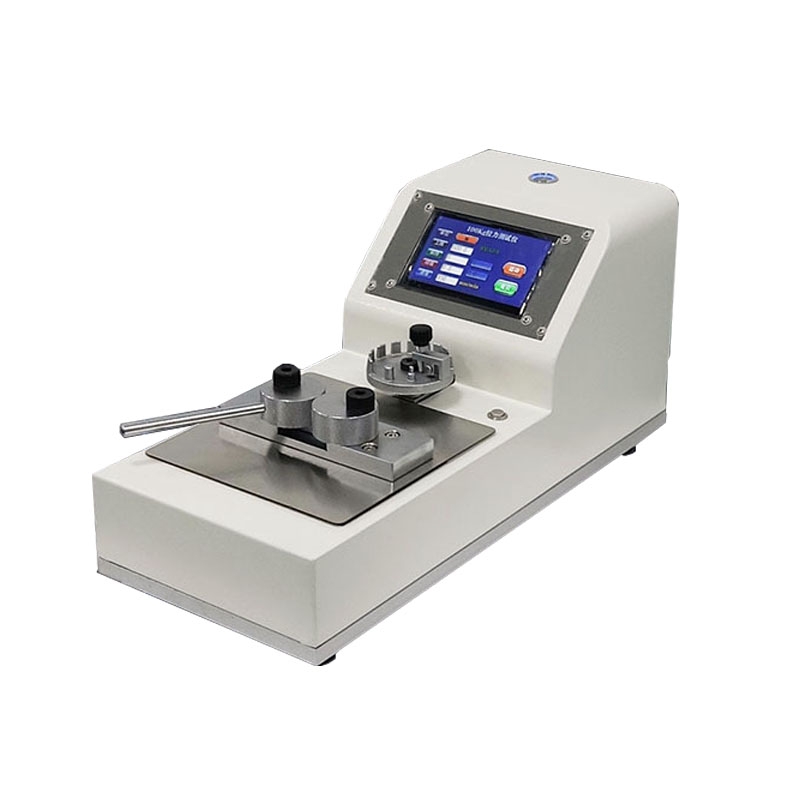

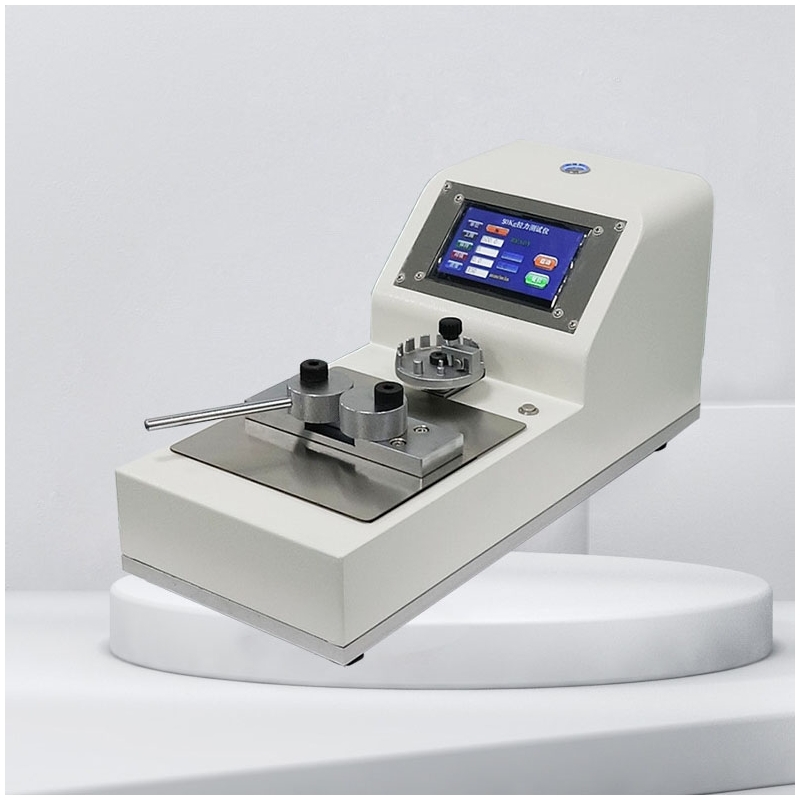

1. This machine adopts advanced electronic control technology, equipped with high-precision control modules and transmission mechanisms, automatic measurement, display of tension values, easy operation, and precise measurement.
2. Peak tensile strength can be tested, and the upper limit of tensile strength and testing time can be set for non-destructive tensile testing.
3. The data center can store 16 programs to meet the testing requirements of commonly used cables, and customers can modify the programs at any time according to their actual production situation.
4. Automatic clamping of wire size expansion and contraction tension changes.
5. The chuck can accommodate various sizes of wires, and special terminal specifications can be customized.
Parameter:
|
Specifications |
500N |
1000N |
3000N |
|
Total weight |
10kg |
12kg |
21kg |
|
Overall dimensions |
L430*W180*H210mm |
L430*W180*H210mm |
L480*W260*H240mm |
|
Input power |
AC220V 50/60HZ |
||
|
Total machine power |
100W |
100W |
300W |
|
Device Function |
Terminal crimping test tension |
||
|
Range of tensile strength |
≤500N |
≤1000N |
≤3000N |
|
Pull stroke |
40mm |
||
|
Test speed |
10-800mm/min |
10-800mm/min |
10-400mm/min |
|
Test accuracy |
±0.04N |
||
|
Program storage |
16 groups |
||
|
Display mode |
Touch LCD display screen |
||
|

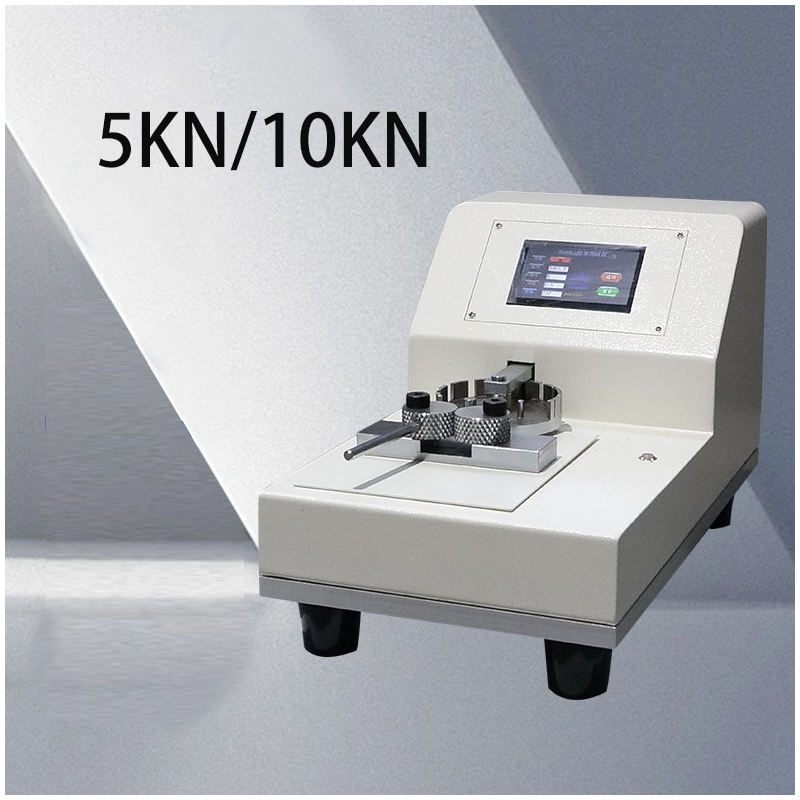

Specifications |
5000N |
10000N |
|
Testing Scope |
10-5000N(1-500kg) |
10-10000N(1-1000kg) |
|
Total weight |
65kg |
|
|
Overall dimensions |
L710*W490*H295mm |
|
|
Input power |
AC220V 50/60HZ |
|
|
Total machine power |
0.3KW |
|
|
Device Function |
Tensile testing, printing function, connecting to MS, printing labels, tensile curve, automatic clamping |
|
|
Detecting itinerary |
70mm |
|
|
Detection speed |
10-600mm/min(Can be set) |
|
|
Transmission mechanism |
Hybrid stepper motor, precision unidirectional screw, linear guide column |
|
|
Program storage |
0-16 (user can edit it yourself) |
|
|
Display mode |
7-inch touch screen display |
|
